Electron Multiplier, API 2000 / 3200 and 3200 Q-TRAP (ETP Multiplier)

Part Number: 14610 (Sciex PN: WC017960)

Exceptionally sensitive discrete dynode electron multiplier with long operating life and excellent air stability.

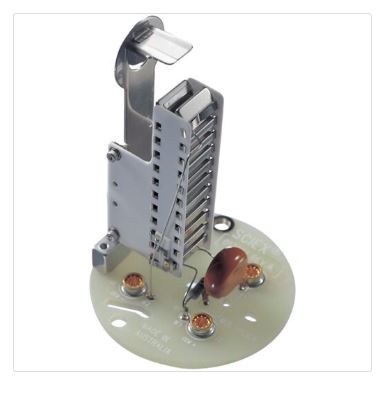

ETP 14610 Detector for API 2000 LC-MS Instruments

The 14610 is a direct replacement multiplier for the API 2000 instruments. Sockets on the 14610 mounting base connect directly with the electrical pins of the API instrument.
Connections are:

• • -HV
  • +HV
  • Deflector
  • Output Signal

ETP electron multipliers incorporate air-stable “ACTIVE FILM” materials in a discrete-dynode multiplier design.

14610 Specifications

• • Input aperture diameter (nominal): 11 mm
  • Internal resistance (nominal): 29.6 Mega Ohms
  • Number of dynodes: 21
  • Maximum recommended bias voltage: 3300 volts
  • Deflector voltage range: +/- 500 volts
  • Typ. gain at 2000 volts bias voltage (new multiplier): 3×107
  • Maximum dark counts (-HV at -6000 volts and +HV at -3900 volts): 20 counts per minute
  • Maximum dark counts (-HV at -2500 volts and +HV at 0 volts): 3 counts per minute
  • Life: Nominal 1 Coulomb
  • Electrical connections (via receptacles in PCB): -HV / +HV / Deflector / Output Signal
